规格
Specifications

数量
Quantity

功率
Power
/Kw

备注
Remark

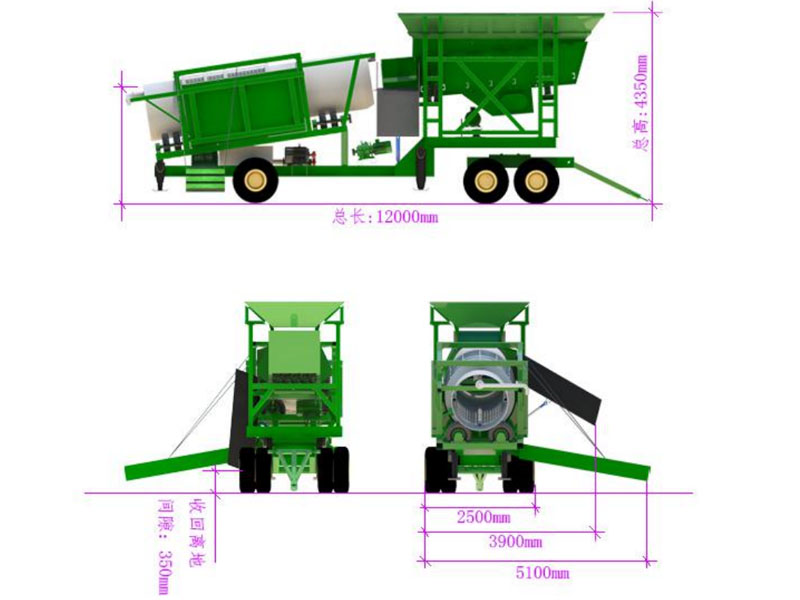

底盘
耀彩网 chassis

三轴12条9.00-2#轮胎；
自制重型汽车底盘，采用30#\25#工字钢梁焊接
Three axle 12 tire 9.00-2

1套
耀彩网 1set

耀彩网 -

含牵引&转向系统
耀彩网 Including traction & steering system

振动给料机
Vibrating feeder

给料槽规格：4800X1000，20mm厚板
料斗：4800X2300，16mm厚板
上层篦条：28*90链条钢，间距70mm
Feed tank specification: 4800X1000, 20 mm thick plate
Hopper: 4800 x2300, 16mm thick plate
Upper grate: 耀彩网28 * 90 chain steel, spacing 70mm

1套
1set

进料斗容积约6m3排废料溜槽为液压折叠式
The volume of feed hopper is about 6m3
耀彩网 The waste discharge chute is of hydraulic folding type

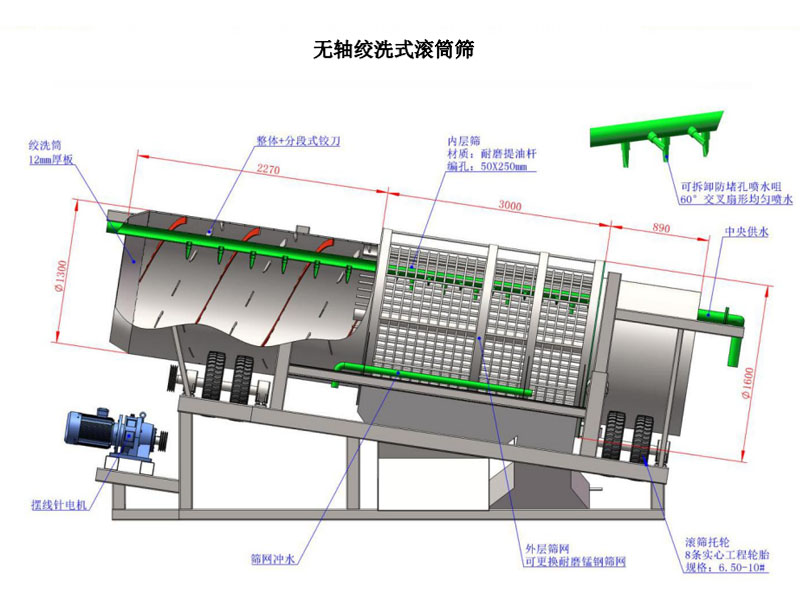

绞洗筛
耀彩网 Shaftless roller screen

规格：Ø1.6X6米；
绞洗筒：Ø1.3米，长约2.3米，板厚12mm，内设整条+分段式铰刀；
滚筒筛：内径1.3米，外径1.6米，长度3米；
内层编孔材质为耐磨提油杆，孔径40*240mm;
外层捆绑6mm耐磨锰钢筛网；
托轮：4组共8条6.50-10实心工程轮胎；
供水系统：采用中央供水+侧冲水方式，中央供水部分采用可拆卸式防堵喷水咀，60°交叉扇形均匀喷水。
电机：7.5KW摆线针*2台
Specification: Ø 1.6x6m;
Mixing drum：It is 1.3m long, about 2.3m long and 12mm thick. It is equipped with a whole + segmented reamer
Shaftless roller screen：The inner diameter is 1.3m, the outer diameter is 1.6m and the length is 3M;
The inner layer is made of wear-resistant oil lifting rod with an aperture of 40 * 240mm;
The outer layer is bound with 6 mm wear-resistant manganese steel screen;
Supporting wheel: 4 groups of 8 6.50-10 solid engineering tires in total;
Water supply system: central water supply + side flushing mode is adopted, the central water supply part adopts removable anti blocking water nozzle, and 60 ° cross fan-shaped uniform water spraying.
Motor: 2 sets of 7.5kW cycloid pin

1套
1set

固定式淘金毡溜槽
耀彩网 Fixed gold chute

规格：1000*3000mm
耀彩网 Specification: 1000 * 3000mm

1套
1set

两台2T手拉葫芦升降
耀彩网 Two sets of 2T chain block lifting

液压系统
Hydraulic system

液压站1台1 hydraulic station
液压支腿4条4 hydraulic Outriggers
折叠溜槽液压油缸1支
耀彩网 Folding chute hydraulic cylinder 1

1套
1set

离心水泵
Centrifugal pump

30KW 流量：260m3；输送距离：200-300米；扬程28米;6进5出
Flow: 260m3/h;
conveying distance: 200-300m;
lift: 28m
耀彩网 Inlet: 6 inches; outlet: 5 inches

1台
耀彩网 1set

含进水管道12米(橡胶钢丝管)，出水管道30米(消防水带)，超出部分由配件选择。
耀彩网 The water inlet pipe is 12m (rubber steel pipe), and the outlet pipe is 30m (fire hose). The excess part is selected by accessories.

7寸沙泵
7 inch sand pump

进料7寸；出料6寸Feed 7 inches; discharge 6 inches
输送距离40-60米，扬程10米The conveying distance is 40-60m and the lift is 10m
流量Flow：360m3 /h

2套
1set

配带出料管道(橡胶钢丝管)30米
耀彩网 Equipped with discharge pipe (rubber steel pipe) 30m

降压启动柜
耀彩网 Step down start cabinet

开关品牌：德力西Switch brand: Delixi

1套
1set

含至设备电机线，不含电缆线
Including motor line to equipment, excluding cable line

总功率
Total power

（不含液压站功率Excluding hydraulic station）
